Category Archives: intel

Intel DDIO, LLC cache, buffer alignment, prefetching, shared locks and packet rates.

I've been digging into the low level behaviour of high throughput packet classification and pushing for my job. The initial suggestions from everyone was "use netmap!" Which was cool, but it only seems to to fast packet work if you're only ever really flipping packets between receive and transmit rings. Once you start actually looking into the payload, you start having to take memory misses and things can slow down quite a bit. An L3 miss (ie, RAM access) on Sandybridge is ~50ns. (There's also costs involved in walking the TLB, but I won't cover that here.)

For background: .

But! Intel has this magical thing called DDIO. In theory (and there's a lot of theory here), DMA is done via a small (~10%) fraction of LLC (L3) cache, which is shared between all cores. If the data is already in cache when the CPU accesses it, it will be quick. Also, if you then wish to DMA out data from something in cache, it doesn't have to get flushed to memory first - it's just DMAed straight out of cache.

However! When I was doing packet bridge testing (using netmap + bridge, 64 byte payloads), I noticed that I was doing a significant amount of memory bandwidth. It wasn't quite at the rate of 10G worth of bridged data, but DDIO should be doing almost all of that work for me at 64 byte payloads.

So, to reproduce: run netmap bridge (eg 'bridge -i netmap:ix0 -i netmap:ix1') and run pkt-gen between two nodes.

This is the output of 'pcm-memory.x 1' from the intel-pcm toolkit (which is available as a binary package on FreeBSD.)

--                   System Read Throughput(MB/s):    300.68                  --
--                  System Write Throughput(MB/s):    970.81                  --
--                 System Memory Throughput(MB/s):   1271.48                  --

The first theory - the bridging isn't occuring fast enough to service what's in LLC before it gets flushed out by other packets. So, assume:

  1. It's 1/10th of the LLC - which is 1/10th of an 8 core * 2.5MB per core setup, is ~ 2MB.
  2. 64 byte payloads are being cached.
  3. Perfect (!) LLC use.
That's 32,768 packets at a time. Now, netmap is doing ~ 1000 packets a batch and it's keeping up line rate bridging on one core (~14 million packets per second), so it's not likely that.

Ok, so what if it's not perfect LLC usage?

Then I thought back to cache line aliasing and other issues that I've previously written about. What if the buffers are perfectly aligned (say, 2048 byte aligned) - the cache line aliasing effects should also manifest themselves as low LLC utilisation.

Luckily netmap has a twiddle - 'dev.netmap.buf_size' / 'dev.netmap.priv_buf_size'. They're both .. 2048. So yes, the default buffer sizes are aligned, and there's likely some very poor LLC utilisation going on.

So, I tried 1920 - that's 2048 - (2 * 64) - ie, two cache lines less than 2048.

--                   System Read Throughput(MB/s):    104.92                  --
--                  System Write Throughput(MB/s):    382.32                  --
--                 System Memory Throughput(MB/s):    487.24                  --

It's now using significantly less memory bandwidth to do the same thing. I'm guessing this is because I'm now using the LLC much more efficiently.

Ok, so that's nice - but what about when it comes time to actually look at the packet contents to make decisions?

I've modified a copy of bridge to do a few things, mostly inspired by netmap-ipfw:
  • It does batch receive from netmap;
  • but it then looks at the ethernet header do decap that;
  • then it gets the IPv4 src/dst addresses;
  • .. and looks them up in a (very large) traditional hash table.
I also have a modified copy of pkt-gen that will use completely random source and destination IPv4 addresses and ports, so as to elicit some very terrible behaviour.

With an empty hash set, but still dereferencing the ethernet header and IPv4 source/destination, handling a packet at a time, no batching, no prefetching and only using one core/thread to run:

  • Bridges about 6.5 million pps;
  • .. maxes out the CPU core;
  • Memory access: 1000MB/sec read; 423MB/sec write (~1400MB/sec in total).
  • Bridges around 10 million pps;
  • 98% of a CPU core;
  • Memory access: 125MB/sec read, 32MB/sec write, ~ 153MB/sec in total.
So, it's a significant drop in memory throughput and a massive increase in pps for a single core.

Ok, so most of the CPU time is now spent looking at the ethernet header in the demux routine and in the hash table lookup. It's a blank hash table, so it's just the memory access needed to see if the bucket has anything in it. I'm guessing it's because the CPU is loading in the ethernet and IP header into a cache line, so it's not already there from DDIO.

I next added in prefetching the ethernet header. I don't have the code to do that, so I can't report numbers at the moment. But what I did there was I looped over everything in the netmap RX ring, dereferenced the ethernet header, and then did per-packet processing. This was interesting, but I wanted to try batching out next. So, after some significant refactoring, I arranged the code to look like this:
  1. Pull in up to 1024 entries from the netmap receive ring;
  2. Loop through, up to 16 at a time, and place them in a batch
  3. For each packet in a batch do:
    1. For each packet in the batch: optional prefetch on the ethernet header
    2. For each packet in the batch: decapsulate ethernet/IP header;
    3. For each packet in the batch: optional prefetch on the hash table bucket head;
    4. For each packet in the batch: do hash table lookup, decide whether to forward/block
    5. For each packet in the batch: forward (ie, ignore the forward/block for now.)
I had things be optional so I could turn on/off prefetching and control the batch size.

So, with an empty hash table, no prefetching and only changing the batch size, at buf_size=1920:
  • Batch size of 1: 10 million pps;
  • Batch size of 2: 11.1 million pps;
  • Batch size of 4: 11.7 million pps.
Hm, that's cute. What about with prefetching of ethernet header? At buf_size=1920:
  • Batch size of 1: 10 million pps;
  • Batch size of 2: 10.8 million pps;
  • Batch size of 4: 11.5 million pps.
Ok, so that's not that useful. Prefetching on the bucket header here isn't worthwhile, because the buckets are all empty (and thus NULL pointers.)

But, I want to also be doing hash table lookups. I loaded in a reasonably large hash table set (~ 6 million entries), and I absolutely accept that a traditional hash table is not exactly memory or cache footprint happy. I was specifically after what the performance was like for a traditional hash table. Said hash table has 524,288 buckets, and each points to an array of IPv4 addresses to search. So yes, not very optimal by any measure, but it's the kind of thing you'd expect to find in an existing project.

With no prefetching, and a 6 million entry hash table:

At 2048 byte buffers:
  • Batch size of 1: 3.7 million pps;
  • Batch size of 2: 4.5 million pps;
  • Batch size of 4: 4.8 million pps.
At 1920 byte buffers:
  • Batch size of 1: 5 million pps;
  • Batch size of 2: 5.6 million pps;
  • Batch size of 4: 5.6 million pps.
That's a very inefficient hash table - each bucket is going to have around 11 IPv4 entries in it, and that's checking almost a cache line worth of IPv4 addresses in it. Not very nice. But, it's within a cache line worth of data, so in theory it's not too terrible.

What about with prefetching? All at 1920 byte buffers:
  • Batch size of 4, ethernet prefetching: 5.5 million pps
  • Batch size of 4, hash bucket prefetching: 7.7 million pps
  • Batch size of 4, ethernet + hash bucket prefetching: 7.5 million pps
So in this instance, there's no real benefit from doing prefetching on both.

For one last test, let's bump the bucket count from 524,288 to 2,097,152. These again are all at buf_size=1920:
  • Batch size of 1, no prefetching: 6.1 million pps;
  • Batch size of 2, no prefetching: 7.1 million pps;
  • Batch size of 4, no prefetching: 7.1 million pps;
  • Batch size of 4, hash bucket prefetching: 8.9 million pps.
Now, I didn't quite predict this. I figured that since I was reading in the full cache line anyway, having up to 11 entries in it to linearly check would be cheap. It turns out that no, that's not exactly true.

The difference between the naive way (no prefetching, no batching) to 4-packet batching, hash bucket prefetching is not trivial - it's ~ 50% faster. Going all the way to a larger hash bucket was ~75% faster. Now, this hash implementation is not exactly cache footprint friendly - it's bigger than the LLC, so with random flows and thus no real useful cache behaviour it's going to degrade to quite a few memory accesses.

This has been quite a fun trip down the optimisation peephole. I'm going to spend a bunch of time writing down the hardware performance counters involved in analysing this stuff and I'll look to write a follow-up post with details about that.

One final things: threads and locking. I wanted to clearly demonstrate the cost of shared read locks on a setup like this. There's been lots of discussions about the right kind of locking and concurrency strategies, so I figured I'd just do a simple test in this setup and explain how terrible it can get.

So, no read-locks between threads on the hash table, batch size of 4, hash bucket prefetching, buf_size=1920:
  • 1 thread: 8.9 million pps;
  • 4 threads: 12 million pps.
But with a read lock on the hash table lookups:
  • 1 thread: 7 million pps;
  • 4 threads: 4.7 million pps.
I'm guessing that as I add more threads, the performance will drop.

Even taking a rwlock as a reader lock in pthreads is expensive - it's purely just an atomic increment/decrement in FreeBSD, but it's still not free. I'm getting the lock once for two hash table lookups - ie, the source and destination IP hash table lookups are done under one lock. I'm sure if I took the lock for the whole batch hash table lookup it'd work out a little better on a small number of CPU cores, but I think this demonstrates my point - read locks aren't going to cut it when you have a frequently accessed thing to protect.

The best bit about this post? The prefetching, terrible (large) hash table performance and general cache abuse is not new. Doing batching on superscalar Intel CPUs is not new. Documenting DDIO effectiveness using non-power-of-two-aligned buffer sizes is new, but it's just a rehash of the existing cache aliasing effect. But, I now have a little test bed to experiment with these things without having to try and involve the rest of a kernel.

Yes, I'll publish code soon.

Cache Line Aliasing #2, or "What happens when you page align everything"

After a little more digging into the Intel performance side of things, I discovered one of the big reasons for the performance drop on this particular workload: how Intel CPUs do memory reordering.

The TL;DR is this - there's some hardware inside the Intel CPUs that tracks memory ordering and cache contents - but they don't use all the address bits.

The relevant chapter in the intel optimisation guide is 3.6.8 - Capacity Limits and Aliasing in Caches. The specific thing I was hitting was in - Store Forwarding Aliasing.

Assembly/Compiler Coding Rule 56. (H impact, M generality) Avoid having a store followed by a non-dependent load with addresses that differ by a multiple of 4 KBytes. Also, lay out data or order computation to avoid having cache lines that have linear addresses that are a multiple of 64 KBytes apart in the same working set. Avoid having more than 4 cache lines that are some multiple of 2 KBytes apart in the same first-level cache working set, and avoid having more than 8 cache lines that are some multiple of 4 KBytes apart in the same first-level cache working set.

So, given this, what can be done? In this workload, a bunch of large matrices were allocated via jemalloc, which page aligns large allocations. In the default invocation of the benchmark (where the allocation padding size is 0), the memory access patterns showed a very large number of counter events on "LD_BLOCKS_PARTIAL.ADDRESS_ALIAS" - which is the number of 64k address aliases on the Sandy Bridge Xeon processors I've been testing on. (The same occurs on Westmere, Ivy Bridge and Haswell.) As I vary the padding size, the address aliasing value drops, the memory access counters increase, and the general performance increases.

On the test boxes I have (running pmcstat -w 120 -C -p LD_BLOCKS_PARTIAL.ADDRESS_ALIAS ./himenobmtxpa M )

0 217799413 830.995025
64 18138386 1624.296713
96 8876469 1662.486298
128 19281984 1645.370750
192 18247069 1643.119908
256 18511952 1661.426341
320 19636951 1674.154119
352 19716236 1686.694053
384 19684863 1681.110499
448 18189029 1683.163673
512 19380987 1691.937818

So there's still plenty of aliasing going on at different padding offsets, however it's a very marked drop between 0 and, well, anything.

It turns out that someone's gone and done a bunch more digging into the effects of various CPU magic under the hood. The last paper in the list (Analysing Contextual Bias..) looks at Aliasing and Cache Effects and the effect of memory layout. There's some cute (and sobering!) analysis of the performance changes due to something as simple as the length of your login name in the UNIX environment. It's worth reading.

The summary? Maybe page alignment of all of your memory accesses isn't the way to go.

For further reading:

Mesa 10.x and i915 on FreeBSD 9.x

Currently, the i915 driver on FreeBSD 9.3 has no support for hardware context. This means we are stuck with Mesa 9.1 and xserver 1.14.

To solve this, the plan is to provide the i915 kernel driver as a port. xf86-video-intel is modified to automatically load this driver, instead of the i915kms.ko module shipped with FreeBSD 9.3-RELEASE.

A patch is available: we would like users running FreeBSD 9.3 on an i915-based desktop to test it with their daily workload.

When this works, we can get rid of Mesa 9.1 and move forward with Mesa 10.x and xserver 1.17+.

DRM 3.8 update committed!

The DRM device-independent code was updated to match Linux 3.8 in r280183 in FreeBSD 11-CURRENT! The update will be merged to FreeBSD 10-STABLE after the dust settled.

I want to thank everyone who tested the patch in the past year and reported problems.

What’s new?

Changes were covered by previous articles:

And now?

In the kernel, the next step is to take care of the i915 driver: we badly need Haswell support.

cache line aliasing effects, or "why is freebsd slower than linux?"

There was some threads on FreeBSD/DragonflyBSD mailing lists a few years ago (2012?) which talked about some math benchmarks being much slower on FreeBSD/DragonflyBSD versus Linux.

When the same benchmark is run on FreeBSD/DragonflyBSD using the Linux layer (ie, a linux binary compiled for linux, but run on BSD) it gives the same or better behaviour.

Some digging was done, and it turned out it was due to memory allocation patterns and memory layout. The jemalloc library allocates large chunks at page aligned boundaries, whereas the allocator in glibc under Linux does not.

I've put the code online in the hope that others can test and verify this:

The branch 'local/freebsd' has my local change to allow the allocator offset to be specified. The offset compounds on each allocation - so with an 'n' byte offset, the first allocation is 0 bytes offset from the page boundary, the next is 'n' bytes offset from the page boundary, the next is '2n' bytes offset, etc.

You can experiment with different values and get completely different behavioural results. It's non-trivial: there's a 100% speedup by using a 127 byte offset for each allocation, versus a 0 byte offset.

I'd like to investigate cache line aliasing effects further. There was work done a few years ago to offset mbuf headers in the FreeBSD kernel so they weren't all page-aligned or 256/512/1024 byte aligned - and apparently this gave a significant performance improvement. But it wasn't folded into FreeBSD. What I'd like to do is come up with some better strategies / profiling guides for identifying when this is actually happening so the underlying objects being accessed can be adjusted.

So - if anyone out there has any tips, hints or suggestions on how to do this, please let me know. I'd like to document and automate this testing.

Testing the DRM update

The DRM update patch is now ready for review and testing.

As you can see, the patch is huge and I don’t expect a deep review of it. When I started to work on this, I tried to import some bits here and there. But I ended up porting every DRM files from Linux 3.8 from scratch. Many symbols were renamed (structure names, members, variables, etc.), functions were reordered or moved between files, new helpers and macros were added. The end-result is that the diff with Linux is greatly reduced.

Changes are mostly under-the-hood; the most important ones are described below. Beside a couple Radeon PCI IDs, drivers are largely untouched. Don’t expect Haswell support or Radeon power management in this patch for instance.

I think the two changes which could cause stability issues are:

  • A new lock, global to the DRM subsystem, was introduced. This one exists in Linux for a long time, but was not used in the original port of DRM: it was replaced by the lock protecting accesses to the structure representing a device. This incompatible change required us to sometimes unlock/relock the device lock to avoid recursion. Now that the global DRM lock is restored, we may have issues in some places where the device is now missing.
  • Return values were hopefully sanitized. On Linux, they return negative integers to indicate an error code. In FreeBSD, we do the opposite. The original DRM port modified many places to use positive integers. I restored negative integers to reduce the diff. Now, integers are converted from/to positive integers only when they come from a FreeBSD API or when they are returned to other FreeBSD subsystems. I reviewed every return values to make sure we use the proper sign, but I’m sure there are bugs in this area.

Now, the new things! First, support for the setmaster/dropmaster ioctls was introduced. A master is the application controlling the video device. The most common master is the X.Org server. Those ioctls allows masters to tell when they no longer use the video device so another master can use it. This can be used to run two X.Org servers for instance: when a user vt-switch, the currently displayed X.Org server drops its master privilege, allowing the second server to become the master.

The other new feature is the support for minor devices. Historically, a video device is accessed through /dev/dri/card0 for instance. As shown in the previous paragraph, if two masters compete for the same device, only one is allowed to execute commands on the video device. It could make sense for two X.Org servers. It is less than ideal if you want to run multiple OpenCL programs. Minor devices where introduced to present several /dev entries for a given video device. With this patch, you will see /dev/dri/card0 and /dev/dri/controlD64. The second dev entry is not used currently. When we update the drivers to a more recent Linux version and gain support for render nodes, another minor device will appear: /dev/dri/renderD128. Render nodes are used to grant applications such as computation programs a limited access to the video device. The X.Org server remains the master application, and an OpenCL program can use the video card without having to ask anything to the server. It doesn’t even need a running server. But this feature is not for now: we need to update the drivers first.

On the OpenCL front

Koop Mast, Johannes Dieterich and Oliver Hartmann made a lot of progress on OpenCL lately! A new “opencl” branch was created on GitHub, with several new ports:
  • lang/ocl-icd is an OpenCL ICD loader implementation. It is a wrapper who can manage several vendor-specific OpenCL implementations.
  • Four OpenCL implementations are being worked on:
    • Beignet (lang/beignet) is for Intel GPUs.
    • Clover (lang/clover) is for Radeon GPUs; it is part of Mesa.
    • Freeocl (devel/freeocl) and POCL rely on the CPU.
  • lang/clinfo is a simple tool (like glxinfo) who prints information about the OpenCL platform and device.
This is still experimental and can be considered of “alpha” quality. OpenCL headers are provided by several implementations, we need to handle this. Port categories are not even decided yet. But it is promising nonetheless! You can find a more detailed status on the wiki.

Status of the DRM update

The i915 kernel video driver refresh, committed two weeks ago, was enough to finally make Intel GPUs to start working with the update to the DRM device-independent code being prepared.

More than its age, the problem of our DRM kernel subsystem is its inconsistency:

  • The i915 driver matches Linux 3.5.
  • The Radeon driver comes from Linux 3.8.
  • The device-independent code is a mix of the legacy FreeBSD DRM code (sys/dev/drm) and some bits taken from an unknown version of Linux.

This makes updates very difficult to do because none of the drivers are on the same page.

The goal of this project is to bring the DRM device-independent code to Linux 3.8, the same version than the Radeon driver. It’s working well for more than a year, but couldn’t be committed because the i915 driver wouldn’t work with a newer DRM.

Thanks to the i915 update, it is working now, even if the driver only matches Linux 3.5. However, there are still some issues to review and fix:

  • In Linux, there’s a global DRM lock, mostly used during device attach/detach. In FreeBSD, the device lock was used instead. This caused many functions to be changed to avoid recursive locking (because they used the device lock). With the DRM update, I’m restoring the global DRM lock but there are still places where the locking is wrong: I need to review all of them.
  • Another problem is returned error codes. In Linux, they use negative integers. In FreeBSD, functions were modified to use positive integers. To reduce the diff, I’m restoring the negative integers inside the DRM subsystem. I just convert them to positive ones at the last moment, when the DRM subsystem interacts with other FreeBSD components. Again, this needs a thorough review.

This work is happenning in my “kms-drm-update-38″ branch on GitHub (branched from 11-CURRENT, frequently updated). Only the kernel is relevant, no need to rebuild world. Please test it as much as you can and report back to the freebsd-x11@ mailing-list!

Update to the i915 kernel driver

On Wednesday January 21th, Konstantin Belousov committed a first batch of updates to the i915 kernel video driver. Several fixes followed the initial commit.

His work brings the driver more closer to Linux 3.5 and thus includes several bug fixes and improvements to the support of generations up-to Ivy Bridge. However, Haswell and later generations are not supported yet: this will come at a later time.

Among the bugs fixed, the most annoying for users were:

  • Broken OpenGL applications (crashes, garbaged display) after one or more suspend/resume cycles. This regression appeared after the addition of hardware contexts support.
  • Backlight support which was non-functional for some people. The feedback seems positive now.

Furthermore, this driver refresh allows Jean-Sébastien Pédron to move forward with the DRM update work-in-progress. Another article will be posted on that topic.

More RSS UDP tests – this time on a Dell R720

I've recently had the chance to run my RSS UDP test suite up on a pair of Dell R720s. They came with on-board 10G Intel NICs (ixgbe(4) in FreeBSD) so I figured I'd run my test suite up on it.

Thank you to the Enterprise Storage Division at Dell for providing hardware for me to develop on!

The config is like in the previous blog post, but now I have two 8-core Sandy Bridge Xeon CPUs to play with. To simply things (and to not have to try and solve NUMA related issues) I'm running this on the first socket. The Intel NIC is attached to the first CPU socket.


  • CPU: Intel(R) Xeon(R) CPU E5-2650 0 @ 2.00GHz (2000.04-MHz K8-class CPU) x 2
  • RAM: 64GiB
  • HTT disabled

# ... until ncpus is tunable, make it use 8 buckets.

This time I want to test with 8 streams, so after some trial and error I found the right IPv4 addresses to use:

  • Server:
  • Client:,,,,,,,
The test was like before - the server ran one rss-udp-srv program that spawns one thread per RSS bucket. The client side runs rss-clt programs to generate traffic - but now there's eight of them instead of four.

The results are what I expected: the contention is in the same place (UDP receive) and it's per-core - it doesn't contend between CPU cores.

Each CPU is transmitting and receiving 215,000 510-byte UDP frames a second. It scales linearly - 1 CPU is 215,000 TX/RX frames a second. 8 CPUs is 215,000 TX/RX frames a second * 8. There's no degrading as the CPU core count increases.

That's 1.72 million packets per second. At 510 bytes frames it's about 7 gigabits/sec in and out.

The other 8 cores are idle. Ideally we'd be able to run an application in those cores - so hopefully I can get my network / rss library up and running enough to prototype an RSS-aware memcached and see if it'll handle this particular workload.

It's a far cry from what I think we can likely achieve - but please keep in mind that I know I could do more awesome looking results with netmap, PF_RING or Intel's DPDK software. What I'm trying to do is push the existing kernel networking subsystem to its limits so the issues can be exposed and fixed.

So, where's the CPU going?

In the UDP server program (pid 1620), it looks thus:

# pmcstat -P CPU_CLK_UNHALTED_CORE -T -w 1 -p 1620
PMC: [CPU_CLK_UNHALTED_CORE] Samples: 34298 (100.0%) , 155 unresolved

  8.0 kernel     fget_unlocked        kern_sendit:4.2 kern_recvit:3.9
  7.0 kernel     copyout              soreceive_dgram:5.6 amd64_syscall:0.9
  3.6 kernel     __mtx_unlock_flags   ixgbe_mq_start
  3.5 kernel     copyin               m_uiotombuf:1.8 amd64_syscall:1.2
  3.4 kernel     memcpy               ip_output:2.9 ether_output:0.6
  3.4 kernel     toeplitz_hash        rss_hash_ip4_2tuple
  3.3 kernel     bcopy                rss_hash_ip4_2tuple:1.4 rss_proto_software_hash_v4:0.9
  3.0 kernel     _mtx_lock_spin_cooki pmclog_reserve
  2.7 kernel     udp_send             sosend_dgram
  2.5 kernel     ip_output            udp_send

In the NIC receive / transmit thread(s) (pid 12), it looks thus:

# pmcstat -P CPU_CLK_UNHALTED_CORE -T -w 1 -p 12

PMC: [CPU_CLK_UNHALTED_CORE] Samples: 79319 (100.0%) , 0 unresolved

 10.3 kernel     ixgbe_rxeof          ixgbe_msix_que
  9.3 kernel     __mtx_unlock_flags   ixgbe_rxeof:4.8 netisr_dispatch_src:2.1 in_pcblookup_mbuf:1.3
  8.3 kernel     __mtx_lock_flags     ixgbe_rxeof:2.8 netisr_dispatch_src:2.4 udp_append:1.2 in_pcblookup_mbuf:1.1 knote:0.6
  3.8 kernel     bcmp                 netisr_dispatch_src
  3.6 kernel     uma_zalloc_arg       sbappendaddr_locked_internal:2.0 m_getjcl:1.6
  3.4 kernel     ip_input             netisr_dispatch_src
  3.4 kernel     lock_profile_release __mtx_unlock_flags
  3.4 kernel     in_pcblookup_mbuf    udp_input
  3.0 kernel     ether_nh_input       netisr_dispatch_src
  2.4 kernel     udp_input            ip_input
  2.4 kernel     mb_free_ext          m_freem
  2.2 kernel     lock_profile_obtain_ __mtx_lock_flags
  2.1 kernel     ixgbe_refresh_mbufs  ixgbe_rxeof

It looks like there's some obvious optimisations to poke at (what the heck is fget_unlocked() doing up there?) and yes, copyout/copyin are really terrible but currently unavoidable. The toeplitz hash and bcopy aren't very nice but they're occuring in the transmit path because at the moment there's no nice way to efficiently set both the outbound RSS hash and RSS bucket ID and send to a non-connected socket destination (ie, specify the destination IP:port as part of the send.) There's also some lock contention that needs to be addressed.

The output of the netisr queue statistics looks good:

root@abaddon:/home/adrian/git/github/erikarn/freebsd-rss # netstat -Q
Setting                        Current        Limit
Thread count                         8            8
Default queue limit                256        10240
Dispatch policy                 direct          n/a
Threads bound to CPUs          enabled          n/a

Name   Proto QLimit Policy Dispatch Flags
ip         1    256    cpu   hybrid   C--
igmp       2    256 source  default   ---
rtsock     3    256 source  default   ---
arp        4    256 source  default   ---
ether      5    256    cpu   direct   C--
ip6        6    256   flow  default   ---
ip_direct     9    256    cpu   hybrid   C--

WSID CPU   Name     Len WMark   Disp'd  HDisp'd   QDrops   Queued  Handled
   0   0   ip         0    25        0 839349259        0       49 839349308
   0   0   igmp       0     0        0        0        0        0        0
   0   0   rtsock     0     2        0        0        0       92       92
   0   0   arp        0     0      118        0        0        0      118
   0   0   ether      0     0 839349600        0        0        0 839349600
   0   0   ip6        0     0        0        0        0        0        0
   0   0   ip_direct     0     0        0        0        0        0        0
   1   1   ip         0    20        0 829928186        0      286 829928472
   1   1   igmp       0     0        0        0        0        0        0
   1   1   rtsock     0     0        0        0        0        0        0
   1   1   arp        0     0        0        0        0        0        0
   1   1   ether      0     0 829928672        0        0        0 829928672
   1   1   ip6        0     0        0        0        0        0        0
   1   1   ip_direct     0     0        0        0        0        0        0
   2   2   ip         0     0        0 835558437        0        0 835558437
   2   2   igmp       0     0        0        0        0        0        0
   2   2   rtsock     0     0        0        0        0        0        0
   2   2   arp        0     0        0        0        0        0        0
   2   2   ether      0     0 835558610        0        0        0 835558610
   2   2   ip6        0     0        0        0        0        0        0
   2   2   ip_direct     0     0        0        0        0        0        0
   3   3   ip         0     1        0 850271162        0       23 850271185
   3   3   igmp       0     0        0        0        0        0        0
   3   3   rtsock     0     0        0        0        0        0        0
   3   3   arp        0     0        0        0        0        0        0
   3   3   ether      0     0 850271163        0        0        0 850271163
   3   3   ip6        0     0        0        0        0        0        0
   3   3   ip_direct     0     0        0        0        0        0        0
   4   4   ip         0    23        0 817439448        0      345 817439793
   4   4   igmp       0     0        0        0        0        0        0
   4   4   rtsock     0     0        0        0        0        0        0
   4   4   arp        0     0        0        0        0        0        0
   4   4   ether      0     0 817439625        0        0        0 817439625
   4   4   ip6        0     0        0        0        0        0        0
   4   4   ip_direct     0     0        0        0        0        0        0
   5   5   ip         0    19        0 817862508        0      332 817862840
   5   5   igmp       0     0        0        0        0        0        0
   5   5   rtsock     0     0        0        0        0        0        0
   5   5   arp        0     0        0        0        0        0        0
   5   5   ether      0     0 817862675        0        0        0 817862675
   5   5   ip6        0     0        0        0        0        0        0
   5   5   ip_direct     0     0        0        0        0        0        0
   6   6   ip         0    19        0 817281399        0      457 817281856
   6   6   igmp       0     0        0        0        0        0        0
   6   6   rtsock     0     0        0        0        0        0        0
   6   6   arp        0     0        0        0        0        0        0
   6   6   ether      0     0 817281665        0        0        0 817281665
   6   6   ip6        0     0        0        0        0        0        0
   6   6   ip_direct     0     0        0        0        0        0        0
   7   7   ip         0     0        0 813562616        0        0 813562616
   7   7   igmp       0     0        0        0        0        0        0
   7   7   rtsock     0     0        0        0        0        0        0
   7   7   arp        0     0        0        0        0        0        0
   7   7   ether      0     0 813562620        0        0        0 813562620
   7   7   ip6        0     0        0        0        0        0        0
   7   7   ip_direct     0     0        0        0        0        0        0
root@abaddon:/home/adrian/git/github/erikarn/freebsd-rss #

It looks like everything is being dispatched correctly; nothing is being queued and/or dropped.

But yes, we're running out of socket buffers because each core is 100% pinned:

root@abaddon:/home/adrian/git/github/erikarn/freebsd-rss # netstat -sp udp
        6773040390 datagrams received
        0 with incomplete header
        0 with bad data length field
        0 with bad checksum
        0 with no checksum
        17450880 dropped due to no socket
        136 broadcast/multicast datagrams undelivered
        1634117674 dropped due to full socket buffers
        0 not for hashed pcb
        5121471700 delivered
        5121471044 datagrams output
        0 times multicast source filter matched

There's definitely room for improvement.

UDP RSS update: ixbge(4) turned out to have issues..

I started digging deeper into the RSS performance on my home test platform. Four cores and one (desktop) socket isn't all that much, but it's a good starting point for this.

It turns out that there was some lock contention inside netisr. Which made no sense, as RSS should be keeping all the flows local to each CPU.

After a bunch of digging, I discovered that the NIC was occasionally receiving packets into the wrong ring. Have a look at tihs:

Sep 12 08:04:32 adrian-hackbox kernel: ix0: ixgbe_rxeof: 100034:
m=0xfffff80047713d00; flowid=0x21f7db62; rxr->me=3
Sep 12 08:04:32 adrian-hackbox kernel: ix0: ixgbe_rxeof: 100034:
m=0xfffff8004742e100; flowid=0x21f7db62; rxr->me=3
Sep 12 08:04:32 adrian-hackbox kernel: ix0: ixgbe_rxeof: 100034:
m=0xfffff800474c2e00; flowid=0x21f7db62; rxr->me=3
Sep 12 08:04:32 adrian-hackbox kernel: ix0: ixgbe_rxeof: 100034:
m=0xfffff800474c5000; flowid=0x21f7db62; rxr->me=3
Sep 12 08:04:32 adrian-hackbox kernel: ix0: ixgbe_rxeof: 100034:
m=0xfffff8004742ec00; flowid=0x21f7db62; rxr->me=3
Sep 12 08:04:32 adrian-hackbox kernel: ix0: ixgbe_rxeof: 100032:
m=0xfffff8004727a700; flowid=0x335a5c03; rxr->me=2
Sep 12 08:04:32 adrian-hackbox kernel: ix0: ixgbe_rxeof: 100032:
m=0xfffff80006f11600; flowid=0x335a5c03; rxr->me=2
Sep 12 08:04:32 adrian-hackbox kernel: ix0: ixgbe_rxeof: 100032:
m=0xfffff80047279b00; flowid=0x335a5c03; rxr->me=2
Sep 12 08:04:32 adrian-hackbox kernel: ix0: ixgbe_rxeof: 100032:
m=0xfffff80006f0b700; flowid=0x335a5c03; rxr->me=2

The RX flowid was correct - I hashed the packets in software too and verified the software hash equaled the hardware hash. But they were turning up on the wrong receive queue. "rxr->me" is the queue id; the hardware should be hashing on the last 7 bits. 0x3 -> ring 3, 0x2 -> ring 2.

It also only happened when I was sending traffic to more than one receive ring. Everything was okay if I just transmitted to a single receive ring.

Luckily for me, some developers from Verisign saw some odd behaviour in their TCP stress testing and had dug in a bit further. They were seeing corrupted frames on the receive side that looked a lot like internal NIC configuration state. They figured out that the ixgbe(4) driver wasn't initialising the flow director and receive units correctly - the FreeBSD driver was not correctly setting up the amount of memory each was allocated on the NIC and they were overlapping. They also found a handful of incorrectly handled errors and double-freed mbufs.

So, with that all fixed, their TCP problem went away and my UDP tests started properly behaving themselves. Now all the flows are ending up on the right CPUs.

The flow director code was also dynamically programming flows into the NIC to try and rebalance traffic. Trouble is, I think it's a bit buggy and it's likely not working well with generic receive offload (LRO).

What's it mean for normal people? Well, it's fixed in FreeBSD-HEAD now. I'm hoping I or someone else will backport it to FreeBSD-10 soon. It fixes my UDP tests - now I hit around 1.3 million packets per second transmit and receive on my test rig; the server now has around 10-15% CPU free. It also fixed issues that Verisign were seeing with their high transaction rate TCP tests. I'm hoping that it fixes the odd corner cases that people have seen with Intel 10 gigabit hardware on FreeBSD and makes LRO generally more useful and stable.

Next up - some code refactoring, then finishing off IPv6 RSS!


Receive side scaling: testing UDP throughput

I think it's about time I shared some more details about the RSS stuff going into FreeBSD and how I'm testing it.

For now I'm focusing on IPv4 + UDP on the Intel 10GE NICs. The TCP side of things is done (and the IPv6 side of things works too!) but enough of the performance walls show up in the IPv4 UDP case that it's worth sticking to it for now.

I'm testing on a pair of 4-core boxes at home. They're not special - and they're very specifically not trying to be server-class hardware. I'd like to see where these bottlenecks are even at low core count.

The test setup in question:

Testing software:

  • It requires libevent2 - an updated copy; previous versions of libevent2 didn't handle FreeBSD specific errors gracefully and would early error out of the IO loop.


  • CPU: Intel(R) Core(TM) i5-3550 CPU @ 3.30GHz (3292.59-MHz K8-class CPU)
  • There's no SMT/HTT, but I've disabled it in the BIOS just to be sure
  • 4GB RAM
  • FreeBSD-HEAD, amd64
  • NIC:  '82599EB 10-Gigabit SFI/SFP+ Network Connection
  • ix0:

# for now redirect processing just makes the lock overhead suck even more.
# disable it.



# experiment with deferred dispatch for RSS

kernel config:

include GENERIC

device netmap
options RSS
options PCBGROUP

# in-system lock profiling

# Flowtable - the rtentry locking is a bit .. slow.
options   FLOWTABLE

# This debugging code has too much overhead to do accurate
# testing with.
nooptions         INVARIANTS
nooptions         INVARIANT_SUPPORT
nooptions         WITNESS
nooptions         WITNESS_SKIPSPIN

The server runs the "rss-udp-srv" process, which behaves like a multi-threaded UDP echo server on port 8080.


The client box is slightly more powerful to compensate for (currently) not using completely affinity-aware RSS UDP transmit code.

  • CPU: Intel(R) Core(TM) i5-4460  CPU @ 3.20GHz (3192.68-MHz K8-class CPU)
  • SMT/HTT: Disabled in BIOS
  • 8GB RAM
  • FreeBSD-HEAD amd64
  • Same kernel config, loader and sysctl config as the server
  • ix0: configured as,,,,
The client runs 'udp-clt' programs to source and sink traffic to the server.

Running things

The server-side simply runs the listen server, configured to respond to each frame:

$ rss-udp-srv 1

The client-side runs four couples of udp-clt, each from different IP addresses. These are run in parallel (i do it in different screens, so I can quickly see what's going on):

$ ./udp-clt -l -r -p 8080 -n 10000000000 -s 510
$ ./udp-clt -l -r -p 8080 -n 10000000000 -s 510
$ ./udp-clt -l -r -p 8080 -n 10000000000 -s 510
$ ./udp-clt -l -r -p 8080 -n 10000000000 -s 510

The IP addresses are chosen so that the 2-tuple topelitz hash using the default Microsoft key hash to different RSS buckets that live on individual CPUs.

Results: Round one

When the server is responding to each frame, the following occurs. The numbers are "number of frames generated by the client (netstat)", "number of frames received by the server (netstat)", "number of frames seen by udp-rss-srv", "number of responses transmitted from udp-rss-srv", "number of frames seen by the server (netstat)"
  • 1 udp-clt process: 710,000; 710,000; 296,000; 283,000; 281,000
  • 2 udp-clt processes: 1,300,000; 1,300,000; 592,000; 592,000; 575,000
  • 3 udp-clt processes: 1,800,000; 1,800,000; 636,000; 636,000; 600,000
  • 4 udp-clt processes: 2,100,000; 2,100,000; 255,000; 255,000; 255,000
So, it's not actually linear past two cores. The question here is: why?

There are a couple of parts to this.

Firstly - I had left turbo boost on. What this translated to:

  • One core active: ~ 30% increase in clock speed
  • Two cores active: ~ 30% increase in clock speed
  • Three cores active: ~ 25% increase in clock speed
  • Four cores active: ~ 15% increase in clock speed.
Secondly and more importantly - I had left flow control enabled. This made a world of difference.

The revised results are mostly linear - with more active RSS buckets (and thus CPUs) things seem to get slightly more efficient:
  • 1 udp-clt process: 710,000; 710,000; 266,000; 266,000; 266,000
  • 2 udp-clt processes: 1,300,000; 1,300,000; 512,000; 512,000; 512,000
  • 3 udp-clt processes: 1,800,000; 1,800,000; 810,000; 810,000; 810,000
  • 4 udp-clt processes: 2,100,000; 2,100,000; 1,120,000; 1,120,000; 1,120,000

Finally, let's repeat the process but only receiving instead also echoing back the packet to the client:

$ rss-udp-srv 0
  • 1 udp-clt process: 710,000; 710,000; 204,000
  • 2 udp-clt processes: 1,300,000; 1,300,000; 378,000
  • 3 udp-clt processes: 1,800,000; 1,800,000; 645,000
  • 4 udp-clt processes: 2,100,000; 2,100,000; 900,000
The receive-only workload is actually worse off versus the transmit + receive workload!

What's going on here?

Well, a little digging shows that in both instances - even with a single udp-clt thread running which means only one CPU on the server side is actually active! - there's active lock contention.

Here's an example dtrace output for measuring lock contention with only one active process, where one CPU is involved (and the other three are idle):

Receive only, 5 seconds:

root@adrian-hackbox:/home/adrian/git/github/erikarn/freebsd-rss # dtrace -n 'lockstat:::adaptive-block { @[stack()] = sum(arg1); }'
dtrace: description 'lockstat:::adaptive-block ' matched 1 probe


Transmit + receive, 5 seconds:

dtrace: description 'lockstat:::adaptive-block ' matched 1 probe




Somehow it seems there's less lock contention / blocking going on when both transmit and receive is running!

So then I dug into it using the lock profiling suite. This is for 5 seconds with receive-only traffic on a single RSS bucket / CPU (all other CPUs are idle):

# sysctl = 1; sleep 5 ; sysctl

root@adrian-hackbox:/home/adrian/git/github/erikarn/freebsd-rss # sysctl ; sleep 5 ; sysctl 1 -> 1 1 -> 0

root@adrian-hackbox:/home/adrian/git/github/erikarn/freebsd-rss # sysctl | head -2 ; sysctl | sort -nk4 | tail -10
     max  wait_max       total  wait_total       count    avg wait_avg cnt_hold cnt_lock name
    1496         0       10900           0          28    389      0  0      0 /usr/home/adrian/work/freebsd/head/src/sys/dev/usb/usb_device.c:2755 (sx:USB config SX lock)
       0         0          31           1          67      0      0  0      4 /usr/home/adrian/work/freebsd/head/src/sys/kern/sched_ule.c:888 (spin mutex:sched lock 2)
       0         0        2715           1       49740      0      0  0      7 /usr/home/adrian/work/freebsd/head/src/sys/dev/random/random_harvestq.c:294 (spin mutex:entropy harvest mutex)
       1         0          51           1         131      0      0  0      2 /usr/home/adrian/work/freebsd/head/src/sys/kern/sched_ule.c:1179 (spin mutex:sched lock 1)
       0         0          69           2         170      0      0  0      8 /usr/home/adrian/work/freebsd/head/src/sys/kern/sched_ule.c:886 (spin mutex:sched lock 2)
       0         0       40389           2      287649      0      0  0      8 /usr/home/adrian/work/freebsd/head/src/sys/kern/kern_intr.c:1359 (spin mutex:sched lock 2)
       0         2           2           4          12      0      0  0      2 /usr/home/adrian/work/freebsd/head/src/sys/dev/usb/usb_device.c:2762 (sleep mutex:Giant)
      15        20        6556         520        2254      2      0  0    105 /usr/home/adrian/work/freebsd/head/src/sys/dev/acpica/Osd/OsdSynch.c:535 (spin mutex:ACPI lock (0xfffff80002b10f00))
       4         5      195967       65888     3445501      0      0  0  28975 /usr/home/adrian/work/freebsd/head/src/sys/netinet/udp_usrreq.c:369 (sleep mutex:so_rcv)

Notice the lock contention for the so_rcv (socket receive buffer) handling? What's going on here is pretty amusing - it turns out that because there's so much receive traffic going on, the userland process receiving the data is being preempted by the NIC receive thread very often - and when this happens, there's a good chance it's going to be within the small window that the receive socket buffer lock is held. Once this happens, the NIC receive thread processes frames until it gets to one that requires it to grab the same sock buffer lock that is already held by userland - and it fails - so the NIC thread sleeps until the userland thread finishes consuming a packet. Then the CPU flips back to the NIC thread and continues processing a packet.

When the userland code is also transmitting frames it's increasing the amount of time in between socket receives and decreasing the probability of hitting the lock contention condition above.

Note there's no contention between CPUs here - this is entirely contention within a single CPU.

So for now I'm happy that the UDP IPv4 path is scaling well enough with RSS on a single core. The main performance problem here is the socket receive buffer locking (and, yes, copyin() / copyout().)


Receive Side Scaling: figuring out how to handle IP fragments

The TL:DR; of this is - IP fragments are annoying.

If everything was awesome and there were never IP fragments, all TCP and UDP frames would always have the TCP/UDP header stamped on them, and the NIC could hash the TCP/UDP header in hardware to calculate the destination queue to receive traffic on.

However, everything isn't awesome and there will be cases where IP frames are fragmented. When this happens, the first frame in the fragment has the IPv4 header and the TCP/UDP header - but the subsequent fragments only have the IPv4 header. That means there's not enough information in the rest of the fragments to hash them to the same hash value and thus hardware queue as the first fragment - only the first has the full IPv4+TCP/UDP information.

The Intel and Chelsio NICs will hash on all packets that are fragmented by only hashing on the IPv4 details. So, if it's a fragmented TCP or UDP frame, it will hash the first fragment the same as the others - it'll ignore the TCP/UDP details and only hash on the IPv4 frame. This means that all the fragments in a given IP datagram will hash to the same value and thus the same queue.

But if there are a mix of fragmented and non-fragmented packets in a given flow - for example, small versus larger UDP frames - then some may be hashed via the IPv4+TCP or IPv4+UDP details and some will just be hashed via the IPv4 details. This means that packets in the same flow will end up being received in different receive queues and thus highly likely be processed out of order.

The Linux intel driver code flipped off IPv4+UDP hashing a while ago - they hash UDP frames by their IPv4 details only and then do whatever other load balancing in the kernel they choose. I found this and updated the FreeBSD drivers to do the same. This should result in less out of order UDP frames for UDP heavy workloads. I'm not sure about the Chelsio driver yet - when I convert it to the RSS framework it'll disable IPv4+UDP hashing if that isn't enabled at boot time. This is a good stop-gap, but it's not the whole story.

TCP is where it gets annoying. People don't want to flip off IPv4+TCP hashing as they're convinced that the TCP MSS negotiation and path-MTU discovery stuff will prevent there from being any IP fragmented TCP frames. But, well, that's not really viable in the real world. There are too many misconfigured networks out there and IP fragmentation does occur. So this is also a problem for TCP. This means that the IPv4 fragmented TCP frames in those sessions will come into another receive queue and CPU and this will show up as out of order data.

So, what's this all have to do with receive side scaling?

With RSS, there's a well defined hash for packets and a configuration for what the operating system and NICs are supposed to be doing. It's entirely possible that we'll configure IPv4+TCP to be hashed and also entirely possible we'll see IP fragments showing up on other CPUs. So in order to have the TCP stack run on the right CPU, the IP fragments need to be assembled on whichever CPU they're received upon and then re-injected into the correct destination queue to run on the correct CPU.

Fortunately the FreeBSD netisr scheme makes this easy.

So what I'm doing in my branch (and what will soon show up in -HEAD) is thus:

  • UDP is still hashed as IPv4-only frames for now. I'll change that later to hash on IPv4+UDP and have things reinjected on the correct destination RSS bucket / netisr queue / CPU.
  • I create one netisr thread, pinned to a CPU, for each RSS CPU that's defined.
    • Ideally I'd create one netisr thread for each RSS bucket and pin that, but that'll come later.
  • IP fragments will be hashed to whatever the IPv4 hash calculates, so fragment reassembly will occur on some CPU;
    • .. and it's the same CPU for all frames in a fragmented datagram.
  • Then when the fragment is reassembled, a software hash is calculated for the newly reassembled frame.
    • If RSS is configured to hash for IPv4 only, then it'll see that the hash on the reassembled datagram matches the configured hash for that packet type and reuse it.
    • So, if it's UDP right now, it'll see that UDP is only hashing on IPv4 details and reuse it.
    • .. but if IPv4+UDP hashing is configured, it'll software hash the packet and assign the new flow type and RSS hash.
  • Then, it'll reinject the frame into netisr to be requeued and reprocessed.
  • .. this uses the nh_m2cpuid function to calculate the destination CPU for the given RSS hash.
    • If it's handled on the same destination CPU then it'll be handled.
    • If it's handled on a different destination CPU then it'll be queued to that netisr and dispatched appropriately.
This works. It's not great, and I'd rather the IP fragment reassembly code was much more efficient, but it's correct. I'm going for correctness here to begin with.

Now, before you ask - yes, IPv6 has fragments and yes, I have to do the same thing for IPv6 flows. Most of the code is written.

Finally - the same thing applies to things like IPv4 tunnels, IPv6-in-IPv4 tunnels, IPSEC tunnels and the like. The NIC hashes the packets on the IPv4 header details but once the packet is de-encapsulated, it needs to be reinjected back into the correct CPU for further processing.

Application awareness of receive side scaling (RSS) on FreeBSD

Part of testing this receive side scaling work is designing a set of APIs that allow for some kind of affinity awareness. It's not easy - the general case is difficult and highly varying. But something has to be tested! So, where should it begin?

The main tricky part of this is the difference between incoming, outgoing and listening sockets.

For incoming traffic, the NIC has already calculated the RSS hash value and there's already a map between RSS hash and destination CPU. Well, destination queue to be much more precise; then there's a CPU for that queue.

For outgoing traffic, the thread(s) in question can be scheduled on any CPU core and as you have more cores, it's increasingly unlikely to be the right one. In FreeBSD, the default is to direct dispatch transmit related socket and protocol work in the thread that started it, save a handful of places like TCP timers. Once the driver if_transmit() method is called to transmit a frame it can check the mbuf to see what the flowid is and map that to a destination transmit queue. Before RSS, that's typically done to keep packets vaguely in some semblance of in-order behaviour - ie, for a given traffic flow between two endpoints (say, IP, or TCP, or UDP) the packets should be transmitted in-order. It wasn't really done for CPU affinity reasons.

Before RSS, there was no real consistency with how drivers hashed traffic upon receive, nor any rules on how it should select an outbound transmit queue for a given buffer. Most multi-queue drivers got it "mostly right". They definitely didn't try to make any CPU affinity choices - it was all done to preserve the in-order behaviour of traffic flows.

For an incoming socket, all the information about the destination CPU can be calculated from the RSS hash provided during frame reception. So, for TCP, the RSS hash for the received ACK during the three way handshake goes into the inpcb entry. For UDP it's not so simple (and the inpcb doesn't get a hash entry for UDP - I'll explain why below.)

For an outgoing socket, all the information about the eventual destination CPU isn't necessarily available. If the application knows the source/destination IP and source/destination port then it (or the kernel) can calculate the RSS hash that the hardware would calculate upon frame reception and use that to populate the inpcb. However this isn't typically known - frequently the source IP and port won't be explicitly defined and it'll be up to the kernel to choose them for the application. So, during socket creation, the destination CPU can't be known.

So to make it simple (and to make it simple for me to ensure the driver and protocol stack parts are working right) my focus has been on incoming sockets and incoming packets, rather than trying to handle outgoing sockets. I can handle outbound sockets easily enough - I just need to do a software hash calculation once all of the required information is available (ie, the source IP and port is selected) and populate the inpcb with that particular value. But I decided to not have to try and debug that at the same time as I debugged the driver side and the protocol stack side, so it's a "later" task.

For TCP, traffic for a given connection will use the same source/destination IP and source/destination port values. So for a given socket, it'll always hash to the same value. However, for UDP, it's quite possible to get UDP traffic from a variety of different source IP/ports and respond from a variety of different source/IP ports. This means that the RSS hash value that we can store in the inpcb isn't at all guaranteed to be the same for all subsequent socket writes.

Ok, so given all of that above information, how exactly is this supposed to work?

Well, the slightly more interesting and pressing problem is how to break out incoming requests/packets to multiple receive threads. In traditional UNIX socket setups, there are a couple of common design patterns for farming off incoming requests to multiple worker threads:

  • There's one thread that just does accept() (for TCP) or recv() (for UDP) and it then farms off new connections to userland worker threads; or
  • There are multiple userland worker threads which all wait on a single socket for accept() or recv() - and hope that the OS will only wake up one thread to hand work to.
It turns out that the OS may wake up one thread at a time for accept() or recv() but then userland threads will sit in a loop trying to accept connections / packets - and then you tend to find they get called a lot only to find another worker thread that was running stole the workload. Oops.

I decided this wasn't really acceptable for the RSS work. I needed a way to redirect traffic to a thread that's also pinned to the same CPU as the receive RSS bucket. I decided the cheapest way would be to allow multiple PCB entries for the same socket details (eg, multiple TCP sockets listening on *:80). Since the PCBGROUPS code in this instance has one PCB hash per RSS bucket, all I had to do was to teach the stack that wildcard listen PCB entries (eg, *:80) could also exist in each PCB hash bucket and to use those in preference to the global PCB hash.

The idea behind this decision is pretty simple - Robert Watson already did all this great work in setting up and debugging PCBGROUPS and then made the RSS work leverage that. All I'd have to do is to have one userland thread in each RSS bucket and have the listen socket for that thread be in the RSS bucket. Then any incoming packet would first check the PCBGROUP that matched the RSS bucket indicated by the RSS hash from the hardware - and it'd find the "right" PCB entry in the "right" PCBGROUP PCB has table for the "right" RSS bucket.

That's what I did for both TCP and UDP.

So the programming model is thus:

  • First, query the RSS sysctl (net.inet.rss) for the RSS configuration - this gives the number of RSS buckets and the RSS bucket -> CPU mapping.
  • Then create one worker thread per RSS bucket..
  • .. and pin each thread to the indicated CPU.
  • Next, each worker thread creates one listen socket..
  • .. sets the IP_BINDANY or IP6_BINDANY option to indicate that there'll be multiple RSS entries bound to the given listen details (eg, binding to *:80);
  • .. then IP_RSS_LISTEN_BUCKET to set which RSS bucket the incoming socket should live in;
  • Then for UDP - call bind()
  • Or for TCP - call bind(), then call listen()
Each worker thread will then receive TCP connections / UDP frames that are local to that CPU. Writing data out the TCP socket will also stay local to that CPU. Writing UDP frames out doesn't - and I'm about to cover that.

Yes, it's annoying because now you're not just able to choose an IO model that's convenient for your application / coding style. Oops.

Ok, so what's up with UDP?

The problem with UDP is that outbound responses may be to an arbitrary destination setup and thus may actually be considered "local" to another CPU. Most common services don't do this - they'll send the UDP response to the same remote IP and port that it was sent from.

My plan for UDP (and TCP in some instances, see below!) is four-fold:

  • When receiving UDP frames, optionally mark them with RSS hash and flowid information.
  • When transmitting UDP frames, allow userspace to inform the kernel about a pre-calculated RSS hash / flow information.
  • For the fully-connected setup (ie, where a single socket is connect() ed to a given UDP remote IP:port and frame exchange only occurs between the fixed IP and port details) - cache the RSS flow information in the inpcb;
  • .. and for all other situations (if it's not connected, if there's no hint from userland, if it's going to a destination that isn't in the inpcb) - just do a software hash calculation on the outgoing details.
I mostly have the the first two UDP options implemented (ie, where userland caches the information to re-use when transmitting the response) and I'll commit them to FreeBSD soon. The other two options are the "correct" way to do the default methods but it'll take some time to get right.

Ok, so does it work?

I don't have graphs. Mostly because I'm slack. I'll do up some before I present this - likely at BSDCan 2015.

My testing has been done with Intel 1G and 10G NICs on desktop Ivy Bridge 4-core hardware. So yes, server class hardware will behave better.

For incoming TCP workloads (eg a webserver) then yes, there's no lock contention between CPUs in the NIC driver or network stack any longer. The main lock contention between CPUs is the VM and allocator paths. If you're doing disk IO then that'll also show up.

For incoming UDP workloads, I've seen it scale linearly on 10G NICs (ixgbe(4)) from one to four cores. This is with no-defragmentation, 510 byte sized datagrams.

Ie, 1 core reception (ie, all flows to one core) was ~ 250,000 pps into userland with just straight UDP reception and no flow/hash information via recvmsg(); 135,000 pps into userland with UDP reception and flow/hash information via recvmsg().

4 core reception was ~ 1.1 million pps into userland, roughly ~ 255,000 pps per core. There's no contention between CPU cores at all.

Unfortunately what I was sending was markedly different. The driver quite happily received 1.1 million frames on one queue and up to 2.1 million when all four queues were busy. So there's definitely room for improvement.

Now, there is lock contention - it's just not between CPU cores. Now that I'm getting past the between-core contention, we see the within-core contention.

For TCP HTTP request reception and bulk response transmission, most of the contention I'm currently seeing is between the driver transmit paths. So, the following occurs:

  • TCP stack writes some data out;
  • NIC if_transmit() method is called;
  • It tries to grab the queue lock and succeeds;
It then appends the frame to the buf_ring and schedules a transmit out the NIC. This bit is fine.

But then whilst the transmit lock is held, because the driver is taking frames from the buf_ring to push into the NIC TX DMA queue
  • The NIC queue interrupt fires, scheduling the software interrupt thread;
  • This pre-empts the existing running transmit thread;
  • The NIC code tries to grab the transmit lock to handle completed transmissions;
  • .. and it fails, because the code it preempted holds the transmit lock already.
So there's some context switching and thrashing going on there which needs to be addressed.

Ok, what about UDP? It turns out there's some lock contention with the socket receive buffer.

The soreceive_dgram() routine grabs the socket receive buffer (SOCKBUF_LOCK()) to see if there's anything to return. If not, and if it can sleep, it'll call sbwait() that will release the lock and msleep() waiting for the protocol stack to indicate that something has been received. However, since we're receiving packets at such a very high rate, it seems that the receive protocol path contends with the socket buffer lock that is held by the userland code trying to receive a datagram. It pre-empts the user thread, tries to grab the lock and fails - and then goes to sleep until the userland code finishes with the lock. soreceive_dgram() doesn't hold the lock for very long - but I do see upwards of a million context switches a second.

To wrap up - I'm pleased with how things are going. I've found and fixed some issues with the igb(4) and ixgbe(4) drivers that were partly my fault and the traffic is now quite happily and correctly being processed in parallel. There are issues with scaling within a core that are now being exposed and I'm glad to say I'm going to ignore them for now and focus on wrapping up what I've started.

There's a bunch more to talk about and I'm going to do it in follow-up posts.
  • what I'm going to do about UDP transmit in more detail;
  • what about creating outbound connections and how applications can be structured to handle this;
  • handling IP fragments and rehashing packets to be mostly in-order - and what happens when we can't guarantee ordering with the hardware hashing UDP frames to a 4-tuple;
  • CPU hash rebalancing - what if a specific bucket gets too much CPU load for some reason;
  • randomly creating a toeplitz RSS hash key at bootup and how that should be verified;
  • multi-socket CPU and IO domain awareness;
  • .. and whatever else I'm going to stumble across whilst I'm slowly fleshing this stuff out.
I hope to get the UDP transmit side of things completed in the next couple of weeks so I can teach memcached about TCP and UDP RSS. After that, who knows!

Finding low hanging fruit with PMC, or "O(wtf)" ?

I've lately been focusing on performance counter stuff on Sandy Bridge (Xeon and non-Xeon.) Part of this has been fixing some of the counters that were wrong. Part has been digesting the Intel tuning guides and the Intel micro-architecture for Sandy Bridge. It's a little different to the older school pipeline driven architecture that rules the MIPS world.

So, I fired up some of my scripts (at on a live cache pushing a whole lot of live video netflix traffic. The scripts use the PMC framework in global counter mode rather than sampling mode, so it's cheap to do and doesn't affect performance.

What I found:

  1. The pipeline slots per cycle metric is around 16% - so there's a lot of stalling going on.
  2. There's a lot of memory traffic going on - around 50% of clock cycles are spent in LLC_MISS - ie, it wasn't in L1, L2 or L3/LLC (last-level cache) and thus has to be fetched from memory.
So, I started digging into why there were so many memory accesses. It turns out the biggest abuser was the cross-CPU IPI involved in synchronising page mapping tables - there are a few places calling pmap_invalidate_range() as part of sendfile() buffer completion and this was causing issues. I pointed this out, someone else has addressed it internally. (Ideally if the IO path uses unmapped buffers on amd64, there shouldn't be any need to map them in and out of KVA.) I think that saved about 4% of total clock cycles spent being stalled.

Then I found a lot of stalling going on in the mwait and ACPI sleep path. It turns out that these paths seem to involve doing ISA space IO port accesses. These are .. very slow. I've just flipped my testing over to use no mwait and use HLT.

Next - flowtable had been turned on during experimentation and I had noticed that the flowtable expire/flush code would periodically spike up. It spiked up more when more clients and more TCP flows were connected. It showed up in both memory accesses and clock cycles busy PMCs - and the reason made me laugh out loud.

The flowtable uses a bitstring_t - effectively an array of bytes treated as a bitmap, like select() FD_SET's - and would walk this to look for flows to expire.

The expiry code would walk the list looking for flows to expire - it would loop over the entire set, calling ffs() over the whole set to look for the next new flow to check.

.. so looping over looping over the whole set. O(n^2). Right there, in the flow cleaning path. Doing byte offset fetches, rather than 32-bit fetches. Everything about it was ridiculous. As we scaled up to serve more flows the flowcleaner CPU cycle count was spiking really, really hard.

I pointed this out in an email to my coworkers and fell asleep. It was fixed when I awoke - a co-worker fixed it to be correctly O(n) whilst I was sleeping. It's now totally disappeared from the CPU cycle and stall analysis.

So, I've just been chipping away at things here and there. There are some larger scale issues that I really want to address but I'd like to make sure all the odd, silly and remaining low hanging fruit are addressed. Then comes the fun stuff.

Adrian Chadd’s Ramblings 2013-08-19 16:52:00

This blog post is mostly so I don't forget this kind of stuff. mentions "% execution stalled". This is the core i7 document rather than the Sandy Bridge document, but bear with me.

The formula is:


However, there's no UOPS_EXECUTED.CORE_STALL_CYCLES in the PMC documentation, nor is it in the Intel SDM chapter on performance counters.

But wait! It kind of is there. There /is/ UOPS_EXECUTED.THREAD, which is "Counts the total number of uops to be executed per thread each cycle." In the same block, it says that to count stall cycles, set CMASK=1, INV=1. Ok, so how does one do that with PMC?

# pmcstat -S UOPS_EXECUTED.THREAD,inv,cmask=1 -T -w 5

Now, it seems to be showing me the ACPI wait and MWAIT functions as high sample events - which is odd, as I didn't think this particular PMC measured C1 and MWAIT states. I'll chase this up.

For Sandy Bridge it's UOPS_DISPATCHED.THREAD - this counts dispatched micro-operatons per-thread each cycle. CMASK=1,INV=1 counts the number of stall cycles.

Profiling on superscalar architectures, or "no, instruction counts don’t necessarily matter nowdays.."

I could spend a lot of time brain dumping various things to do with profiling on anything more recent than Pentium 1 (or, well, anything remotely to do with MIPS of that era, but I digress.) In any case, there's plenty of useful writings about it so I'm not going to - just jump over to .

However, I thought I'd provide a basic example of where "instructions" doesn't actually matter, as well as a shortcoming of the current FreeBSD tools.

My network testing stack does a whole lot of read() and write() syscalls to achieve its goal. For those who know what's going on, I hope you know where I'm taking this. Anyway..

Firstly, the standard. "pmcstat -S instructions -T". This prints a "top" like output counting instructions retired.
Figure 1. # pmcstat -S instructions -T -w 5

This looks like the contention is in the mutexes protecting socket receive and the TCP output path. Sure, but why is it contending?

The problem with doing it based on instructions retired is that it hides any issues to do with stalls. There's a bunch of sources of potential stalls - memory reads, memory writes, stuff not being in cache but being needed for instructions that are running. They're generally either side-effects of operations not being able to complete in time (eg if you have a whole lot of completed operations that need to push stuff out to memory to continue, but there's no free bandwidth to queue memory writes) but sometimes it's just from straight bulk memory copies.

If you're interested about the Intel microarchitecture and how all of these pieces fit together to process an instruction stream in parallel, with all of the memory controller paths coming in and out, have a read of this: .

Ok, so let's look at general stalls. There's a bunch of L1, L2, LLC (last level cache, think "L3" here) operations that can be looked at, as well as stuff that FreeBSD's PMC framework doesn't support  - notably some of the stuff on the "uncore" - the shared cache and pipelines between all cores on a socket. It supports the events implemented using MSRs, but not events implemented using the PCIe configuration space.

So, without further ado:

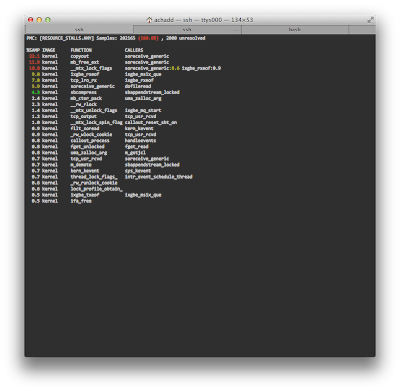

Figure 2. # pmcstat -S RESOURCE_STALLS.ANY -T -w 5
Yup. This looks much more like what I'd expect. The CPU is stalled doing copyout(). This is a mostly-read() workload, so that's what I'd expect. mb_free_ext() is interesting; I'll go look at that.

Now, copyout() is doing a bulk copy. So, yes - I'd expect that to be hurting. mb_free_ext() shouldn't be doing very much work though - I'll do some digging to see what's going on there.

The final output is from the Intel performance tuning overview tools. You can find them here - . There's a nice overview tool (pcm.x) which will output the basic system overview. I like this; it gives a very simple overview of how efficient things are.
Figure 3. "pmc.x 1" running on FreeBSD-10.

Now, this isn't a stock version of pcm.x - I've hacked it up to look slightly saner when doing live reporting - but it still provides exactly the same output in that format. Note the instructions per CPU cycle and the amount of cache misses. It's .. very inefficient. Tsk.

So in summary - don't just do instruction count based profiling. You want to establish whether there are any memory and cache bottlenecks. If you're doing HPC, you want to also check to see if you're hitting SSE, FPU, divider unit and other kinds of math processing stalls.

Now - what would I like to see in FreeBSD?

  • The hwpmc framework needs to grow support for more of the socket and system events - right now it's very "core" focused.
  • Some better top-level tools to provide a system summary like Intel's pcm.x tool would be nice.
  • Some better documentation (read: better than just this wiki page!) looking at how to actually profile and understand system behaviour would be desirable.
  • .. and tying this into dtrace would be great too.
  • Once we get some (more) NUMA awareness, it would be great to have the uncore stuff reporting on things like QPI traffic, cache line and memory accesses from remote sockets/cores, and other stuff to do with NUMA allocation and awareness.
Mostly, however, I'd like to get this stuff into the hands of developers sooner rather than later so they can start running this as a normal day to day thing.

[CFT] Xorg Upgrade 7.5.2

The Xorg Team is pleased to announce the next round of Xorg updates. First of all, note that this is experimental, so you really have to know what you’re
doing read careful and follow exactly our documentation. We are specifically looking for feedback from Intel, ATI and NVIDIA users, we like to know if we break here
anything. The WITHOUT_NOUVEAU switch is gone along with xf86-video-nouveau, we suggest to switch to the nvidia blob.

KMS Support [1]:
Unfortunately, the intel KMS driver will only work for the latest FreeBSD 9-STABLE or 10-CURRENT users. The patch for HEAD current is named all.13.1.patch.
The higher the version the newer the patch is. Other needed patches are already available in the Xorg update.

HEAD Users:
Get the latest patchset from Kib here:

9-STABLE Users:
Meowthink maintanice currently the backport to 9 STABLE, make sure you have the latest FreeBSD 9-STABLE src check out. Get the patch from here:

Rebuild your Kernel and reboot.

Know issuse:
There will be a patch reject in the sys/dev/drm/i915_suspend.c file. The solution is to manually undo the expansion of the $FreeBSD: ….$ tag, so it only
says $FreeBSD$.

Checkout Xorg Development Repo:
You will need to install devel/subversion in order to checkout the xorg repo. Next, you will need to add WITH_NEW_XORG=yes in your /etc/make.conf if you want to try out the
new Xorg and mesa. Note that if you are not qualified for the KMS patch, you shouldn’t use WITH_NEW_XORG=yes because the old intel driver doesn’t build with the new X
server. If you are qualified, you should also set WITH_KMS=yes in /etc/make.conf.

svn co

A small merge script to merge the svn checkout into the real portstree can
be found here:

The script is a modified version of the old kdemerge script. Please set the KDEDIR variable to the path of your ports.

After merging, run one of the following command, depending on which tool you use to manage your installed packages.

portupgrade -af \*
portmaster -a

After installing these, you will have to rebuild all xf86-* ports. We will bump all releated ports during the commit to the portstree.

Our current plan is to let the CFT running until the last weekend of February. We hope to get a lot feedback to solve as many problems as possible.
So please help us to get the best xorg update ever in!

Links: [1]

Happy updating :)

– Miwi

Working on Xorg Stuff!


Well I know I haven’t been writing for a long time but there are always reasons behind it :). Lately I have been busy with my job and personal life, but anyway I’m still alive and I have started working on FreeBSD since a while.

As stated in the subject, why I’m writing today is to talk about FreeBSD Xorg stuff. Personally I have stopped working on it for a long time. The main reason was that we are still stuck on some problems like missing KMS/GEM support, though since a while there is some progress that can be seen. Also kwm@ and eadler@ jumped into the Xorg team and did a lot of good work in the last few months.

As a result, Xorg gets 2 layers of framework. What this means, users with newer GFX hardware will get the chance to use newer Xorg server and drivers. The team has decided to create a new flag called WITH_NEW_XORG that users have to include in /etc/make.conf. This was mainly done for the intel KMS work being done. It should probably work for other chips. Unfortunately, the intel KMS driver will only work on FreeBSD 9-stable or 10-CURRENT users. Older version of FreeBSD will not be supported. Intel users will need to patch their src manually with Kib’s KMS kernel patch to get the newer chips to work. We have libGL and Mesa patches in our xorg-dev repo ready.

Here are some facts on what you will get with WITH_NEW_XORG:

libdrm 2.4.30 (including KMS support)
mesa 7.11.2
xorg-server 1.10.4
a lot of new Graphic Drivers.

After this is done and committed we going to work on Mesa 8.0 and X server 1.12. The reason we haven’t done this yet is because they are in RC stage and x server 1.11 and above break the nvidia driver. We will call for a testing soon with the full instruction on what you will have to do. So keep your eyes open..

So long…

PS: follow me on Twitter here.

GEM and buffer objects

Keith has noted the adventures that we've recently had in the GEM branch with the disagreement between the CPU and GPU about how memory gets addressed. We've got a pretty decent solution now I think, though I'm having some troubles getting the MCHBAR mapped on desktop 965s, so I can't tell what mode the CPU is in. I automatically disable tiling in that case, to avoid broken rendering. Apparently the MCHBAR's locked out so that mortals don't go in and break their memory configuration. But overclockers have figured out how to unlock it, so I'm sure we will figure out as well in due time.

Next project for me is fixing issues with PBO and FBO. While we enabled support for the ARB_framebuffer_objects and ARB_pixel_buffer_objects on 965 with TTM/GEM development, that implementation from the 915 came with a lot of bugs that we haven't got around to fixing. Now as more people are looking to use buffer objects, we need to get those bugs fixed.

The first issue I've found is that we're not flushing batchbuffers full of rendering before mapping buffer objects. This will anger conformance tests that do rendering then read the resulting data out immediately. I wrote up a fix for this today that I'll be testing in the next couple of days.

The second is that we're trying to use the 2d blitter for accelerating copies between buffer objects and the screen. That's things like glReadPixels to a PBO, glDrawPixels from a PBO, glCopyTexSubImage, glCopyPixels with read != draw drawable, etc. The trick is that for buffer objects we render them upside down compared to the shared front and back buffers. So when we're blitting between the two we need to invert the data -- set a negative pitch on one of the buffers and a base address somewhere at the other end. The blitter's supposed to be cool with this. Except that there's this comment in the code:

/* Initial y values don't seem to work with negative pitches. If
* we adjust the offsets manually (below), it seems to work fine.

So we need to not just put the offset somewhere on the other side, but exactly so that y == 0 in the offset we set is the end of the blit area. Combine this with the fact that for tiled buffers the offset has to be 4KB-aligned, and it means that we're probably going to be angering our blitter if you choose unpleasant offsets for the the part of the blit that's in the shared front/back/depth.

I might be able to work around it today by just flipping the buffer that isn't tiled instead, assuming that both aren't tiled. But we want to get to the point of tiling them both. I think the right solution here is to just ditch using the blitter for almost everything. If we figure out how to add meta operations to mesa for these sort of pixel path operations, we could write generic acceleration for anybody who wanted to use it, by mapping them to normal GL operations using texturing. While it's some CPU overhead for state management, the 3D path is supposed to be faster than 2D GPU-wise, and it would get rid of a bunch of metaops code inside of our driver which has proved to be fragile at best.

In the next week I'm hoping to work on getting some metaops set up. Beyond PBO, it would also help us for implementing accelerated SGIS_generate_mipmap, which is currently hurting compiz and other apps, and more complete glBitmap which is hurting mesa demos (and we know how important those are).
